Concrete Design according to ACI 318-19 Now Available

The new ACI 318-19 concrete code has been implemented into RISA-3D v19, RISAFloor v15, RISAFoundation v13 and RISA-2D v19.

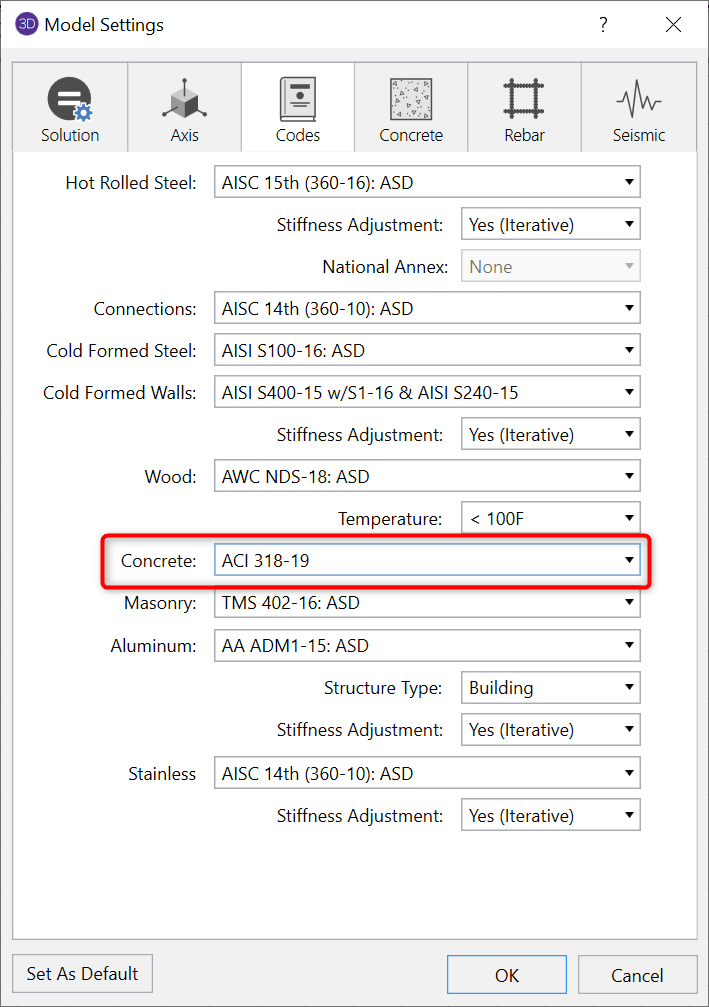

To select this code for your design, simply choose them from the Codes tab of the Model Settings:

A summary of the major changes that have been incorporated include:

• The expansion of permissible applications for high-strength reinforcement. As a result, many requirements for strength and ductility have been adjusted. Some of these requirements include but are not limited to the the strength reduction factor, the maximum/minimum flexural reinforcement limit, and the axial compressive strength of columns.

• The calculation for the shear contribution of concrete (Vc) in accordance with Table 22.5.5.1.The calculation of Vc must consider axial load (Nu) and/or the flexural reinforcement ratio (ρw) when Av > Av,min. A new size effect modification factor (λs) must be considered when Av < Av,min.

• The consideration for the interaction of biaxial shear forces in members when Vu/ΦVn > 0.5 in both orthogonal directions.

• New equations for the allowable compressive strength of concrete piles based on the type of pile.

• Additional slab reinforcement requirements at critical sections for punching shear.

Refer to the articles linked below for more information on effects that ACI 318-19 has on concrete design as well as how these effects are implemented in RISA.
