RISA-Revit 2023 Link Now Available

RISA is pleased to announce the release of the latest RISA-Revit Link which includes compatibility with Revit 2023. The RISA-Revit Link v23.0 allows seamless integration between RISAFloor, RISA-3D, and Autodesk Revit. This version of the link also includes updates to the round-tripping process due to Revit’s new workflow for structural analysis.

The RISA-Revit link utilizes Revit’s analytical model to transfer members between the programs. However, with the release of the latest iteration of the workflow, Revit no longer automatically creates an analytical model when drawing physical members. Instead Revit 2023 introduced a new tool called "Analytical Automation" to help convert the physical members to analytical members. This automation works for most physical member element types in Revit. But for members, such as foundation elements, that are not converted during Revit's "Analytical Automation", the user has to manually generate the analytical member. As always, users must create the analytical model in Revit 2023 before using the RISA-Revit link to transfer model information to RISA-3D or RISAFloor.

Updated Integration Procedure

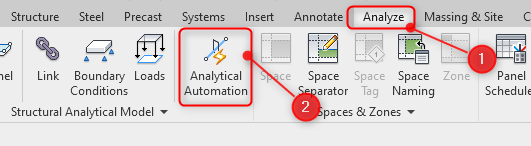

To transfer models from Revit 2023 into RISA, generate the analytical model by selecting the Analyze tab then Analytical Automation in Revit 2023.

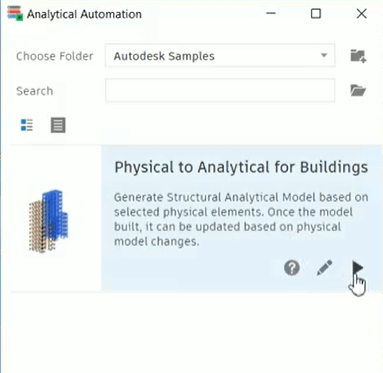

A separate window will populate to start generating the analytical model.

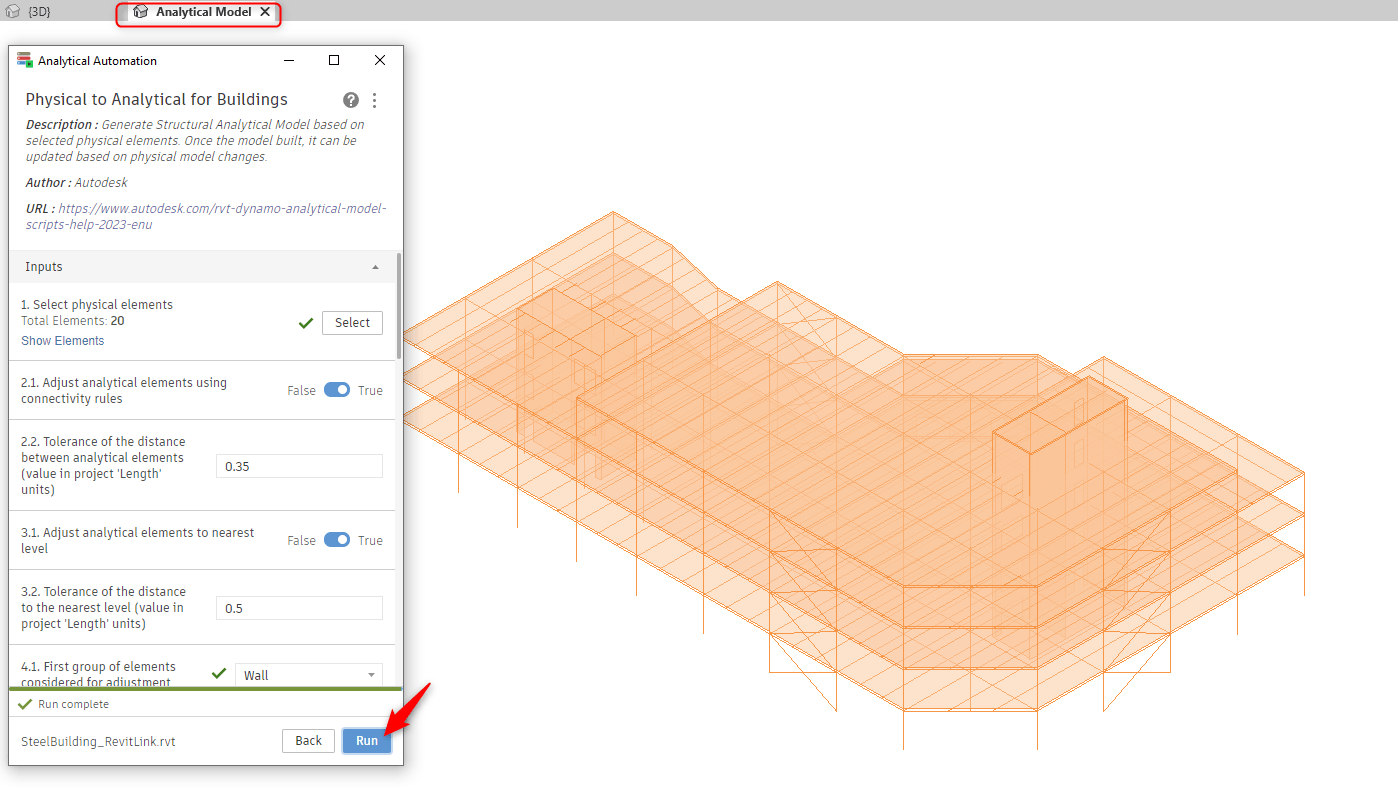

Follow the tool’s prompts to select the Revit members and create an analytical model. For more information about Revit's "Analytical Automation", visit the link below.

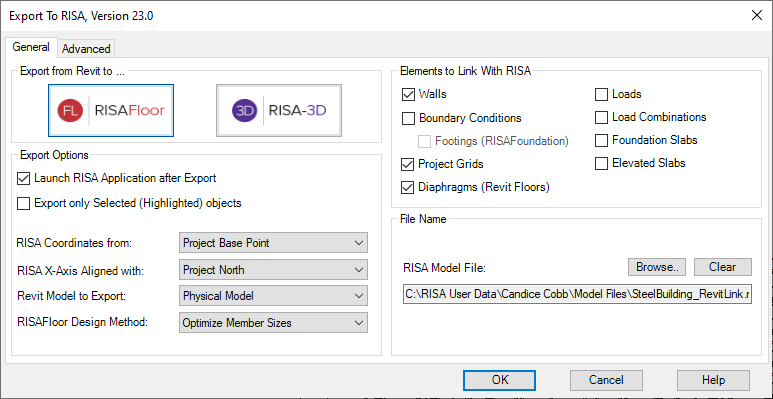

Now you should have your analytical model ready to use our RISA-Revit link.

The RISA-Revit Link v23.0 requires the latest versions of RISA-3D v20.0.3 and RISAFloor v16.0.3.

For more information about the RISA-Revit Link, see the release notes and video below. To download the latest version, visit the link below.
