Using Eccentric Chevron Brace Workpoints

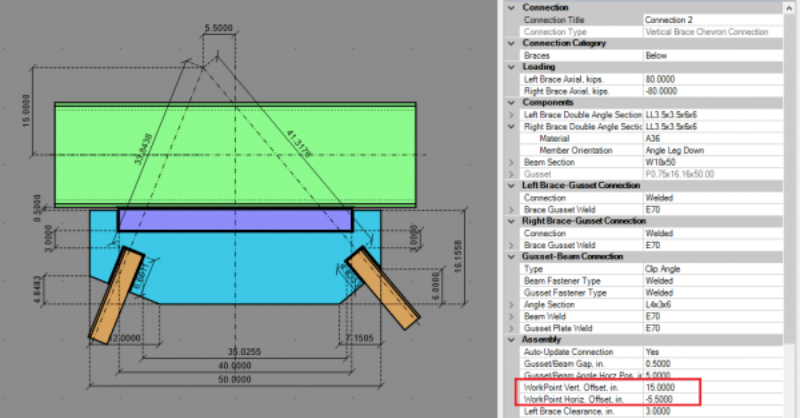

RISAConnection now offers the ability to enter an eccentric work point for the braces on a Vertical Brace Chevron Connection.
RISAConnection now offers the ability to use a wide flange brace member in Vertical Brace Connections.

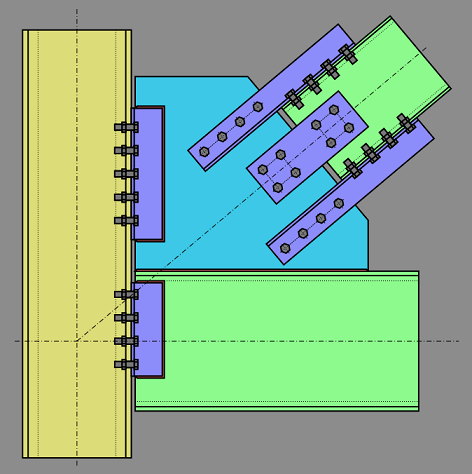

Vertical Brace Diagonal Connection

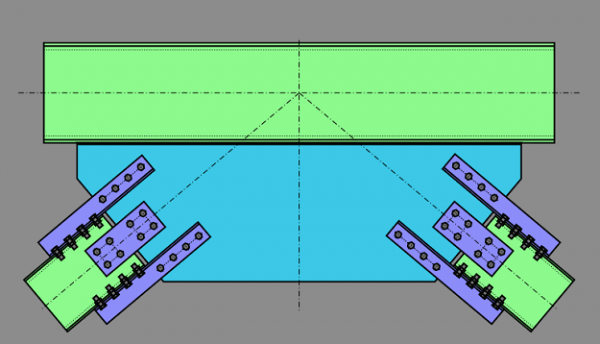

Vertical Brace Chevron Connection
Selecting the Wide Flange Brace

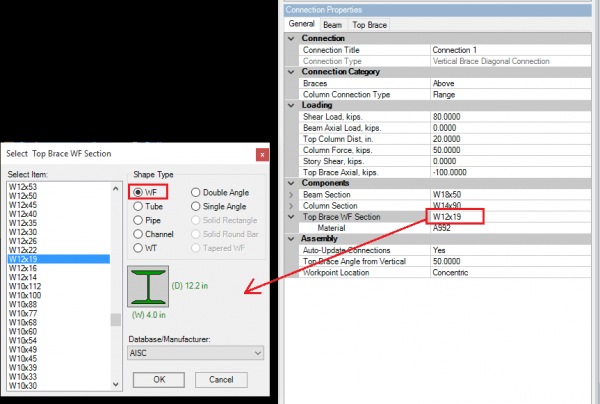

Simply choose the wide flange shape for your brace from the list of available sections:

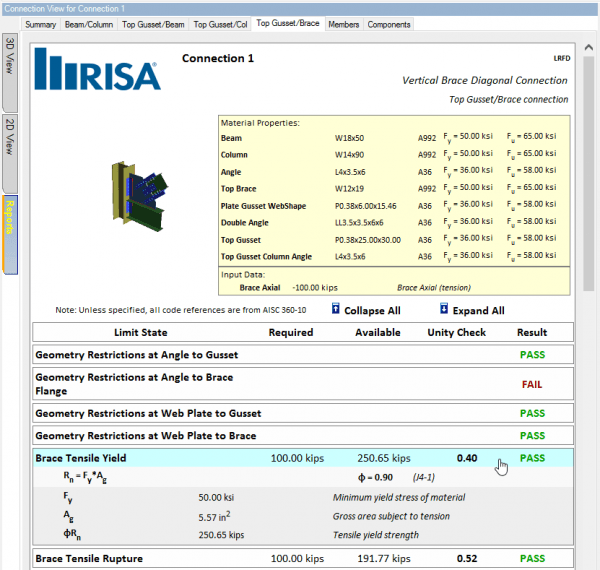

Connection Results
The results report will now check each applicable limit state at each of the connection components. Each of these checks can be reviewed in detail in the report.
MARCH 15, 2017
Read More

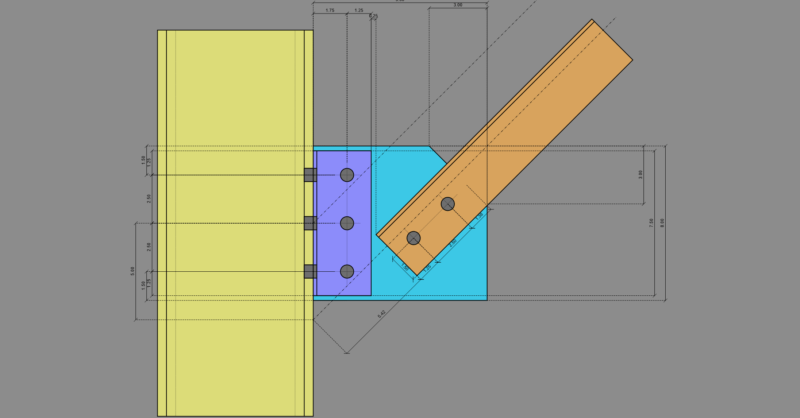

Added Knee Brace Connections
RISAConnection v7 recently added a new Knee Brace (Kicker Brace) connection type. This connection can be designed at the brace to column or brace...
JUNE 28, 2016
Read More

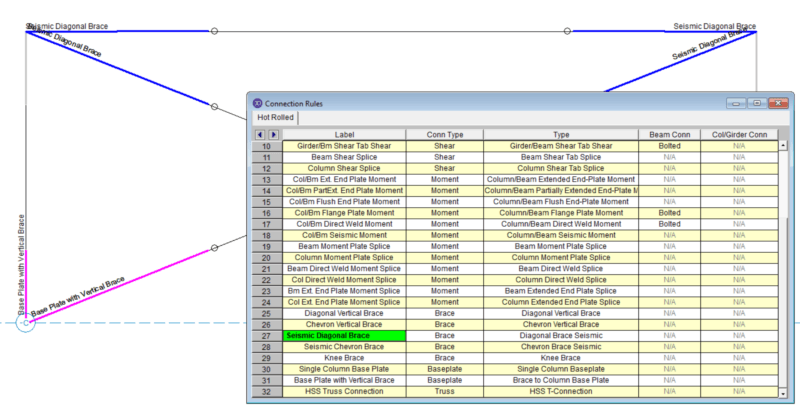

Seismic Brace Connection Integration with RISA-3D
