Detailed Calculation Report for Minimum Required Reinforcement

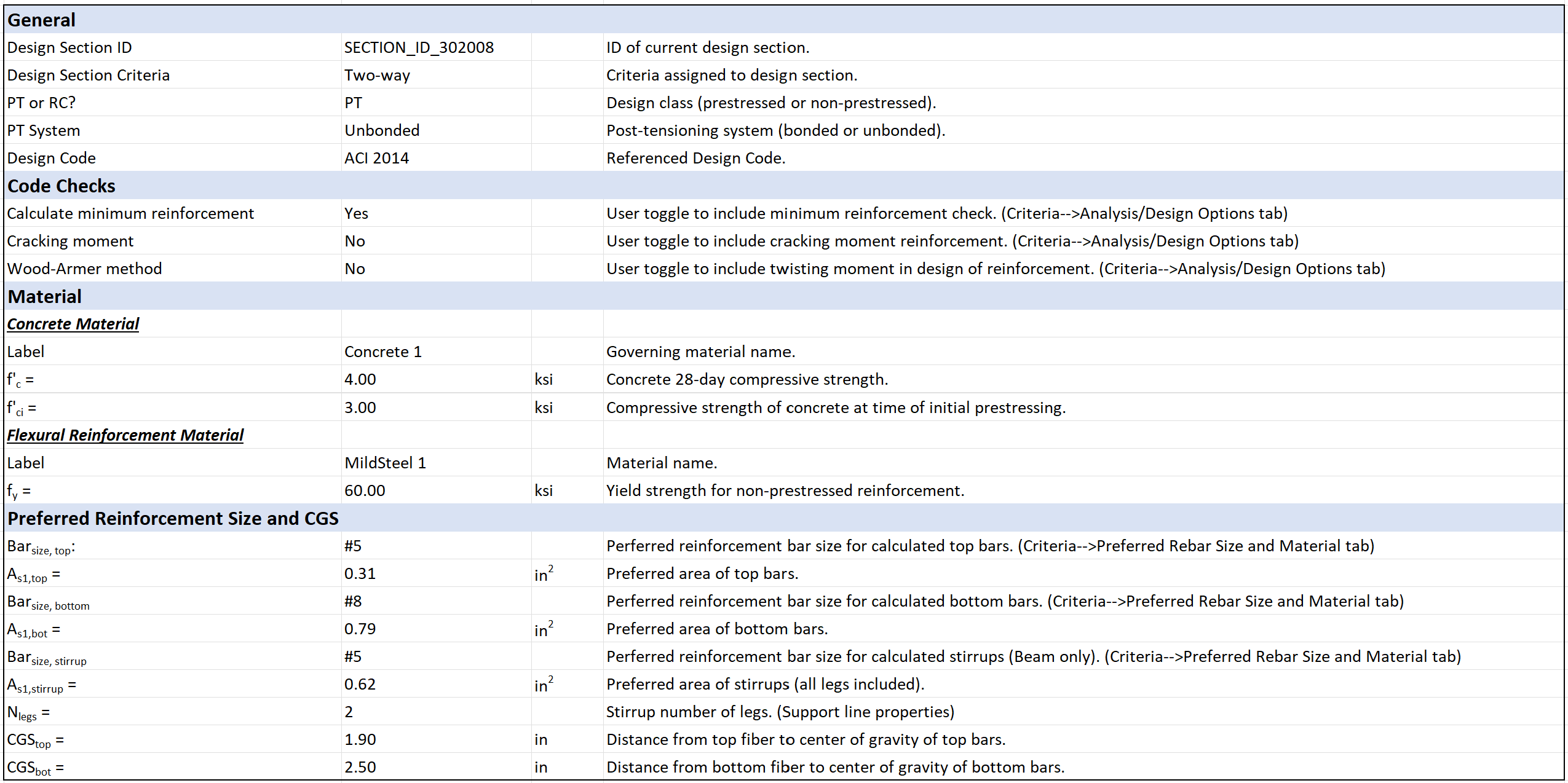

Users can now generate an Excel spreadsheet for each design section showing a summary of the design section properties, reinforcement, and moment demand and capacity. These detailed calculation reports currently include minimum required reinforcement as shown on the As,min tab of the spreadsheet. These calculations include code references and equations and are available for ACI 318-14 and ACI 318-19 codes.

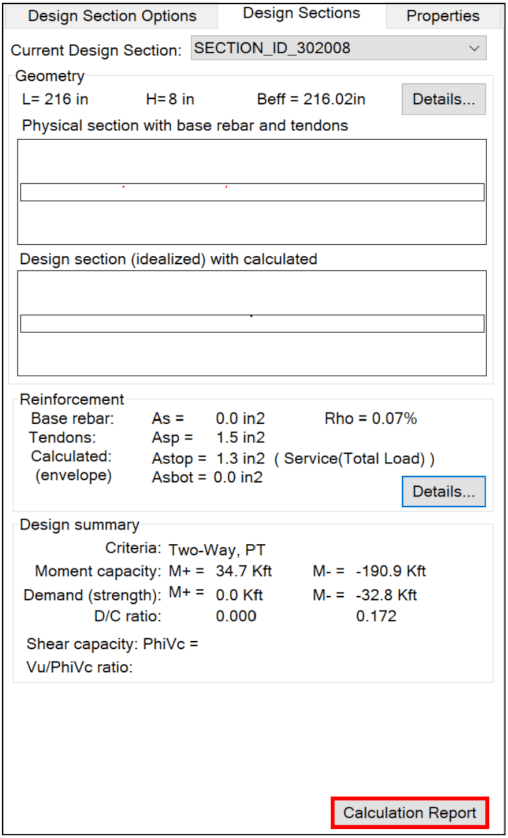

To view the Calculation Report, double-click on a design section. In the Support Line Properties Window, select the Calculation Report option at the bottom of the Design Sections tab to create the XLS Report.

Select “Yes” when prompted to view the XLS Report for the Minimum Required Reinforcement.
