How to Export Detailed Drawings from RISAFoundation

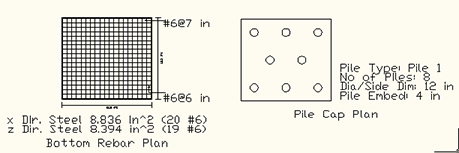

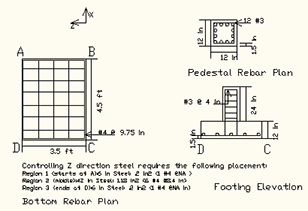

RISAFoundation has the ability to export detailed reinforcement drawings for footings, pile caps, pedestals, and slabs.

Thus, if you have a solved model in RISAFoundation you can get detailed DXF drawings. These are a great start to actually producing construction drawings for your foundations.

To get more information on the general export process and exporting a Foundation Plan see the article below. The foundation plan will display reinforcement, pile, grade beam, and footing schedules as well.

Link: Tips & Tricks: Export a model to DXF
